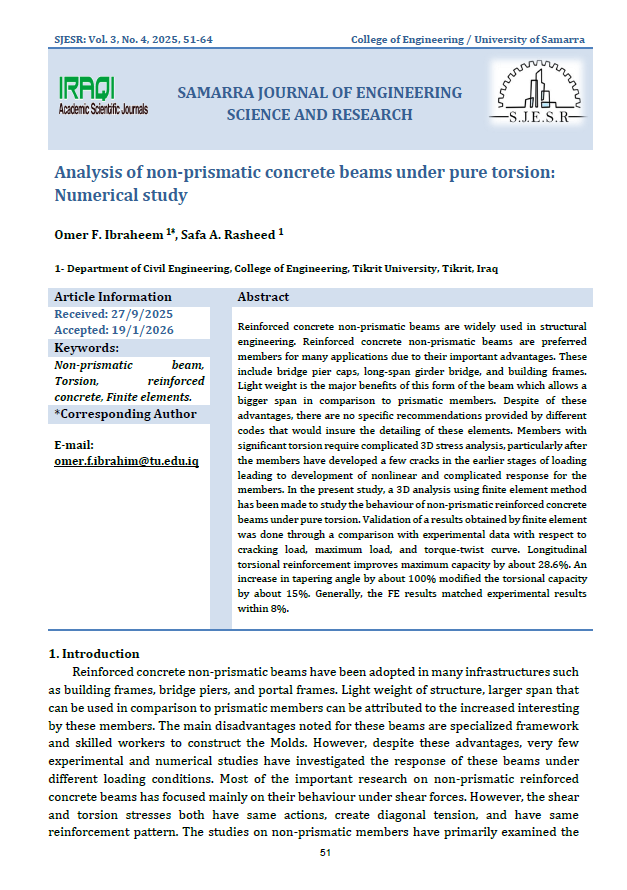

Analysis of non-prismatic concrete beams under pure torsion: Numerical study

Omer F. Ibraheem1 , Safa A. Rasheed
  1. Tikrit University
Published2026-01-28
Pages51-64
SectionArticles
LanguageEnglish
Views607
Downloads182
DOIhttps://doi.org/10.65115/aad85k11
Check for updates

Abstract

Reinforced concrete non-prismatic beams are widely used in structural engineering. Reinforced concrete non-prismatic beams are preferred members for many applications due to their important advantages. These include bridge pier caps, long-span girder bridge, and building frames. Light weight is the major benefits of this form of the beam which allows a bigger span in comparison to prismatic members. Despite of these advantages, there are no specific recommendations provided by different codes that would insure the detailing of these elements. Members with significant torsion require complicated 3D stress analysis, particularly after the members have developed a few cracks in the earlier stages of loading leading to development of nonlinear and complicated response for the members. In the present study, a 3D analysis using finite element method has been made to study the behaviour of non-prismatic reinforced concrete beams under pure torsion. Validation of a results obtained by finite element was done through a comparison with experimental data with respect to cracking load, maximum load, and torque-twist curve. Longitudinal torsional reinforcement improves maximum capacity by about 28.6%. An increase in tapering angle by about 100% modified the torsional capacity by about 15%. Generally, the FE results matched experimental results within 8%.





Keywords Non-prismatic beam Torsion reinforced concrete Finite elements
Funding & supportTikrit university
DisciplinesStructural engineering
CoverageCollege of engineering

References

  1. T. Shuo, K. Okubo, J. Niwa, “The shear behavior of RC tapered short beams with stirrups”, J. Adv. Concr. Technol., vol. 17, pp.506–517, 2019.
  2. H. M. Albegmprli, M. Eren Güls ̧ A. Cevik, “Comprehensive experimental investigation on mechanical behavior for types of reinforced concrete Haunched beam”, Adv. Concr. Constr., vol. 7, no. 1, pp.39–50, 2019.
  3. C. Hou, T. Nakamura, T. Iwanaga, J. Niwa, “Shear behavior of rein- forced concrete and prestressed concrete tapered beams without stirrups”, J. Jpn. Soc. Civ. Eng., vol. 5, pp.170–189, 2017.
  4. A. Tena-Colunga, H. I. Archundia-Aranda, O. M. González-Cuevas, "Behavior of reinforced concrete haunched beams subjected to static shear loading", Eng. Struct., Vol. 30, no. 2, pp. 478-492, 2008.
  5. A. H. A. Al-Ahmed, A. H. Al-Zuhairi, A. M. Hassan, “Behavior of Reinforced Concrete Tapered Beams”, STRUCTURES, vol. 37, pp. 1098–1118, 2022.
  6. M. Qissab, M. M. Salman, "Shear strength of non- prismatic steel fiber reinforced concrete beams without stirrups", Struct. Eng. Mech., vol. 67, pp. 347-358, 2018.
  7. H. B. Rauf, Y. A. Ramadhan, “Effect of size factor and tapered angles on the shear behavior and strength of haunched beams reinforced with basalt fiber reinforced polymer rebars: Experimental and analytical study”, STRUCTURES, vol. 61, 2024.
  8. H. B. Rauf, Y. A. Ramadhan, “Shear behavior and capacity of reinforced concrete haunched beams: comprehensive review, comparative analysis, and structural judgment”, STRUCTURES, vol. 57, 2023.
  9. H. B. Rauf, Y. A. Ramadhan, “Shear strength of reinforced concrete tapered beams by using systematic multiscale models and artificial neural network”, Iran. J. Sci. Technol. Trans. Civil. Eng., vol. 13, no. 1, 2023.
  10. H. M. R Karrar, H. A. Numan, “Behavior of non-prismatic reinforced concrete beams: A review”, The 2nd International Conference of Engineering Science (CESC), May 2024.
  11. E. A. Godínez-Domínguez, A. Tena-Colunga, G. Juarcz-Luna, “Nonlinear finite element modeling of reinforced concrete haunched beams designed to develop a shear failure”, Eng. Struct, Vol. 105, PP 99-122, 2015.
  12. A. A. Jaafer A. W. Abdulghani, “Nonlinear finite element analysis for reinforced concrete haunched beams with opening”, International Conference on Materials Engineering and Science, vol. 454, 8 August 2018, Istanbul, Turkey.
  13. H. S. Jebur, “Nonlinear Finite Element Analysis of Reinforced and Plain Concrete Hunched Beams Under Torsion”, CIV ENG ENVIRON SYST, Vol. 17, no. 1, pp. 229-241, 2021.
  14. ACI Committee 318 (2019), Building code requirements for structural concrete and Commentary, American Concrete Institute, Farmington Hills, MI, USA.
  15. A. H. Nilson, D. Darwin, C. W. Dolan, Design of Concrete Structures, New York, USA, McGraw-Hill Companies, 2010.
  16. A. M. Neville, Properties of Concrete, Harlow, England, 5th ed., Pearson Education Limited, Prentice Hall, 2012.
  17. ASTM A615/615M-14, (2014). Standard Specification for Deformed and Plain Carbon-Steel Bars for Concrete Reinforcement, West Conshohocken, PA: ASTM International.
  18. ANSYS Program. ANSYS Manual help. Version 18.1, 2018.
  19. D. Kachlakev, T. Miller, “Finite element modeling of reinforced concrete structures strengthened with FRP laminates”, SPR 316, Oregon Department of Transportation Research Group & Federal Highway Administration, Washington DC, 2001.
  20. A. J. Wolanski, "Flexural Behavior of Reinforced and Prestressed Concrete Beams Using Finite Element Analysis", Master's Theses, Marquette Campus, 2004.
  21. C. E. Chalioris, “Experimental study of the torsion of reinforced concrete members” Struct. Eng. Mech., vol. 23, no. 6, pp. 713-737, 2006.
  22. L.F.A. Bernardo, S.M.R. Lopes, “Theoretical behavior of HSC sections under torsion”, Eng. Struct, vol. 33, no. 12, PP. 3702-3714, 2012.
